Technical Specifications
Precision engineering.
Precision engineering.
Every detail.

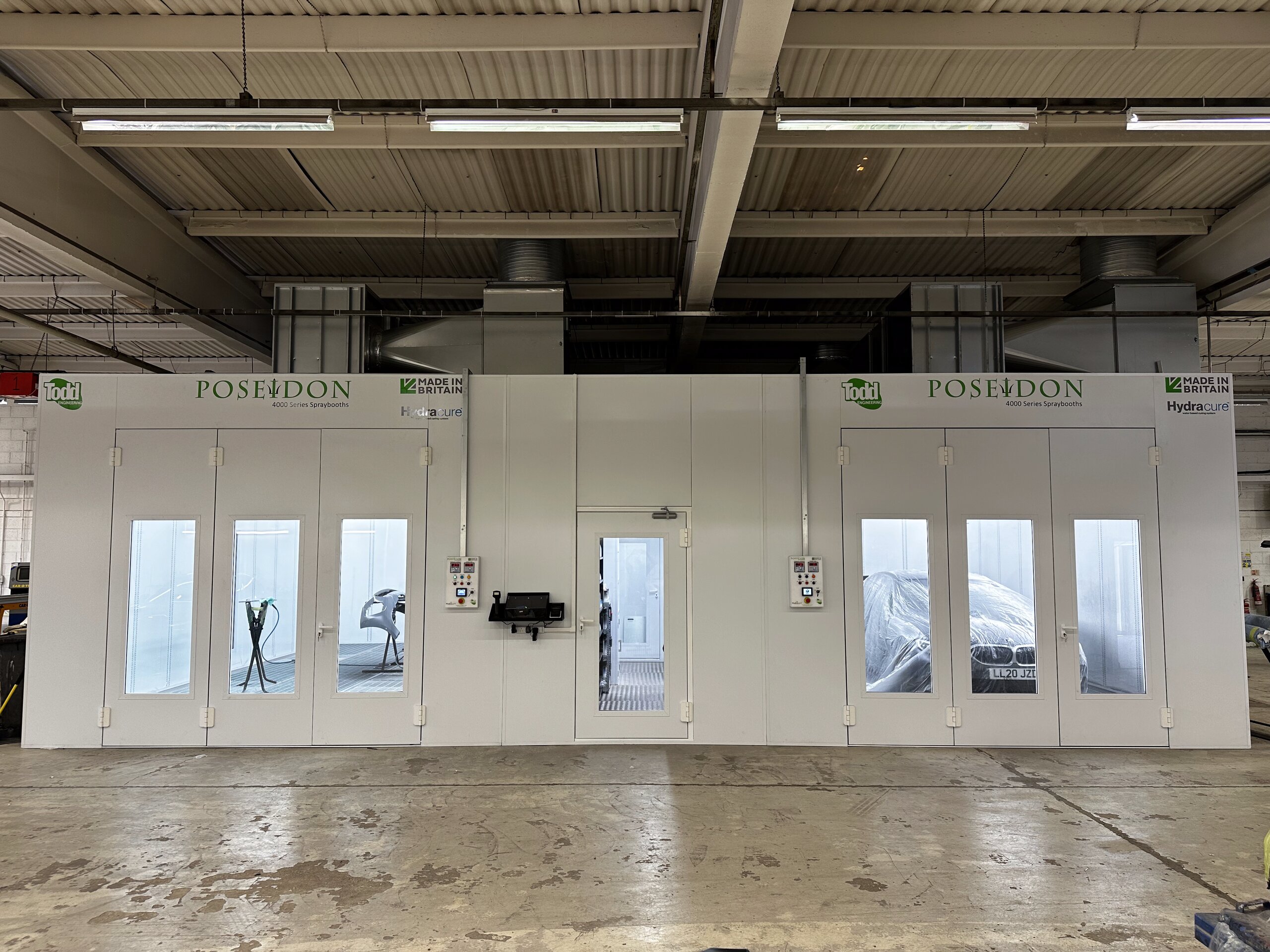

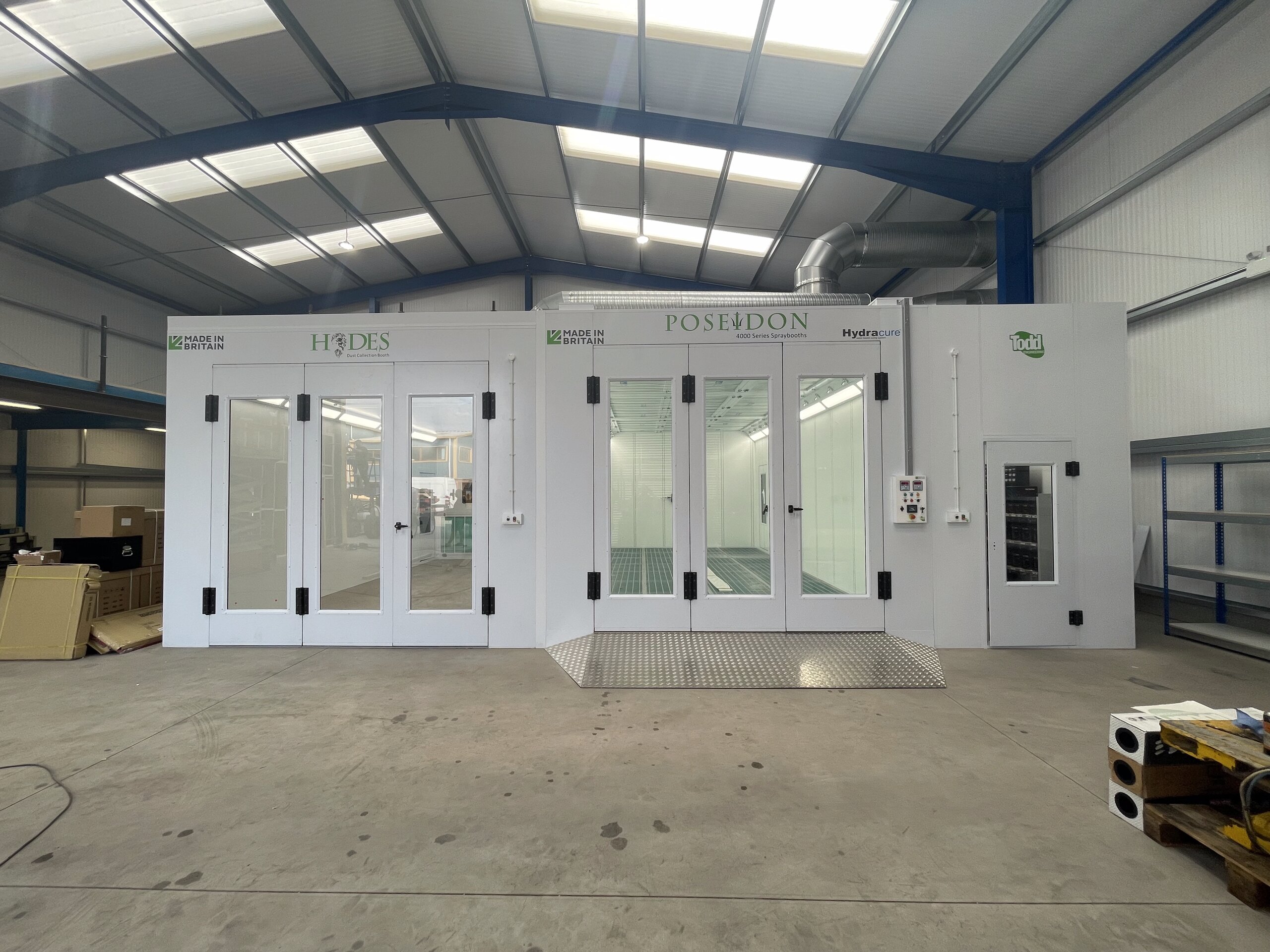

The Poseidon 4000 Series is Todd Engineering's premium spray booth, featuring Hydra-cure™ water-based curing as standard, a fully filtered downdraught floor and 35,000m³/hr airflow. Intelligent temperature control to ±1°C.
Hydra-cure™ StandardDowndraught35,000m³/hr±1°C Temperature Control+1800 Lux LEDInverter VSDs
Application
High-specification automotive spray finishing
Internal Dimensions
6750mm × 3900mm × 2600mm (L×W×H)
External Dimensions
7400mm × 4000mm × 3700mm (L×W×H)
High Top LWB (Internal)
7900mm × 3900mm × 3300mm
High Top LWB (External)
8600mm × 4000mm × 4000mm
Power Supply
415VAC 3Ph/N/E (50/60Hz) / 63A
Maximum Absorbed Power
16kW
Gas Supply
Natural Gas or LPG
Gas Rated Power
220kW / 750,000 BTU's/hr
Natural Gas Consumption
14m³/hr
LPG Consumption
6.5kg/hr
Airflow
35,000m³/hr
Air Changes
7 per minute
Extraction Type
Downdraught — fully filtered floor
Fan Type
Aerofoil Backwards Curved Centrifugal / 7.5kW
Curing System
Hydra-cure™ water-based curing (standard)
Noise Level
70–75 dB cabin / 50% lower outbreak
Inverter VSDs
Yes — electronically balanced cabin pressure
LED Lighting
5000K / 90CRI / +1800 lux
Pneumatic Supply
5 bar
Construction
Double-skinned rockwool insulated panels
Filtration (Input)
EU5 full ceiling plenum — contaminants to 10 microns
Filtration (Extract)
Two-stage EU2 + EU3
Control
PLC-based / 3.5" TFT Touchscreen / ±1°C temperature accuracy
