Titan CV Series

Built for commercial vehicles. Trucks, vans, buses — finished to automotive standard.

Get a QuoteView Specs
Technical Specifications

Precision engineering.
Every detail.

The Titan CV Series is engineered for commercial vehicle spray finishing — trucks, vans, buses and specialist vehicles. Bespoke dimensions, 40,000m³/hr+ airflow and full-width doors as standard.

Commercial VehicleDowndraught AirflowGas-Fired Heating+1400 Lux LEDPLC ControlHigh-Volume Throughput
Request a Quote
Application
Commercial vehicle spray finishing
Internal Dimensions
Up to 14,000mm × 4500mm × 4200mm (L×W×H)
Airflow
40,000m³/hr+
Air Changes
4–5 per minute
Extraction Type
Downdraught — floor-level extract
Heating
Gas-fired indirect — high-capacity
LED Lighting
5000K / 90 CRI / +1400 lux
Filtration (Input)
EU5 — contaminants to 10 microns
Filtration (Extract)
Two-stage EU2 + EU3
Control
PLC-based / 5" TFT Touchscreen
Construction
Heavy-gauge double-skinned insulated panels — 30min fire rated
Door Type
Full-width sliding or bi-fold
Titan CV Series — product render

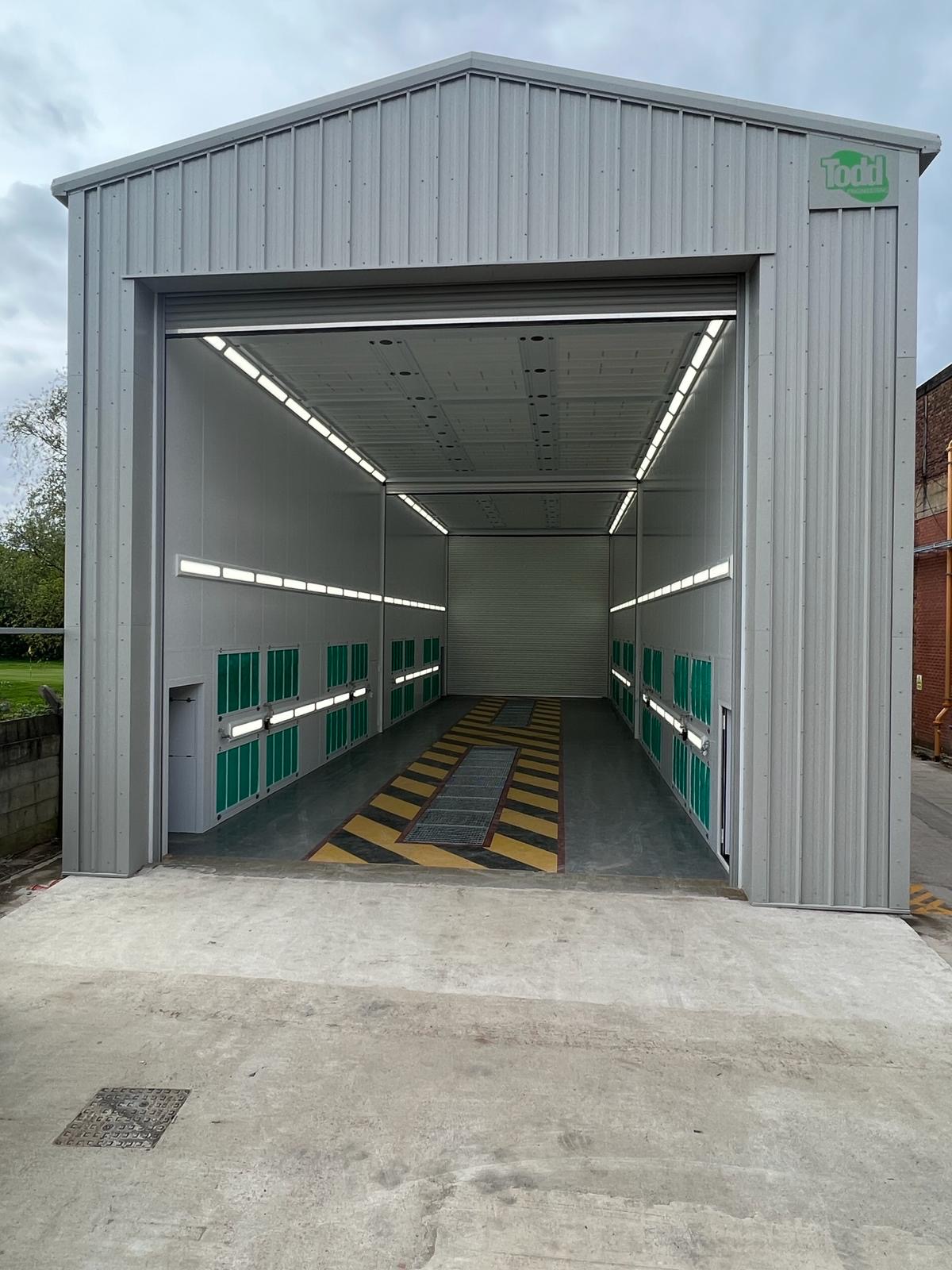

Titan CV Series 1

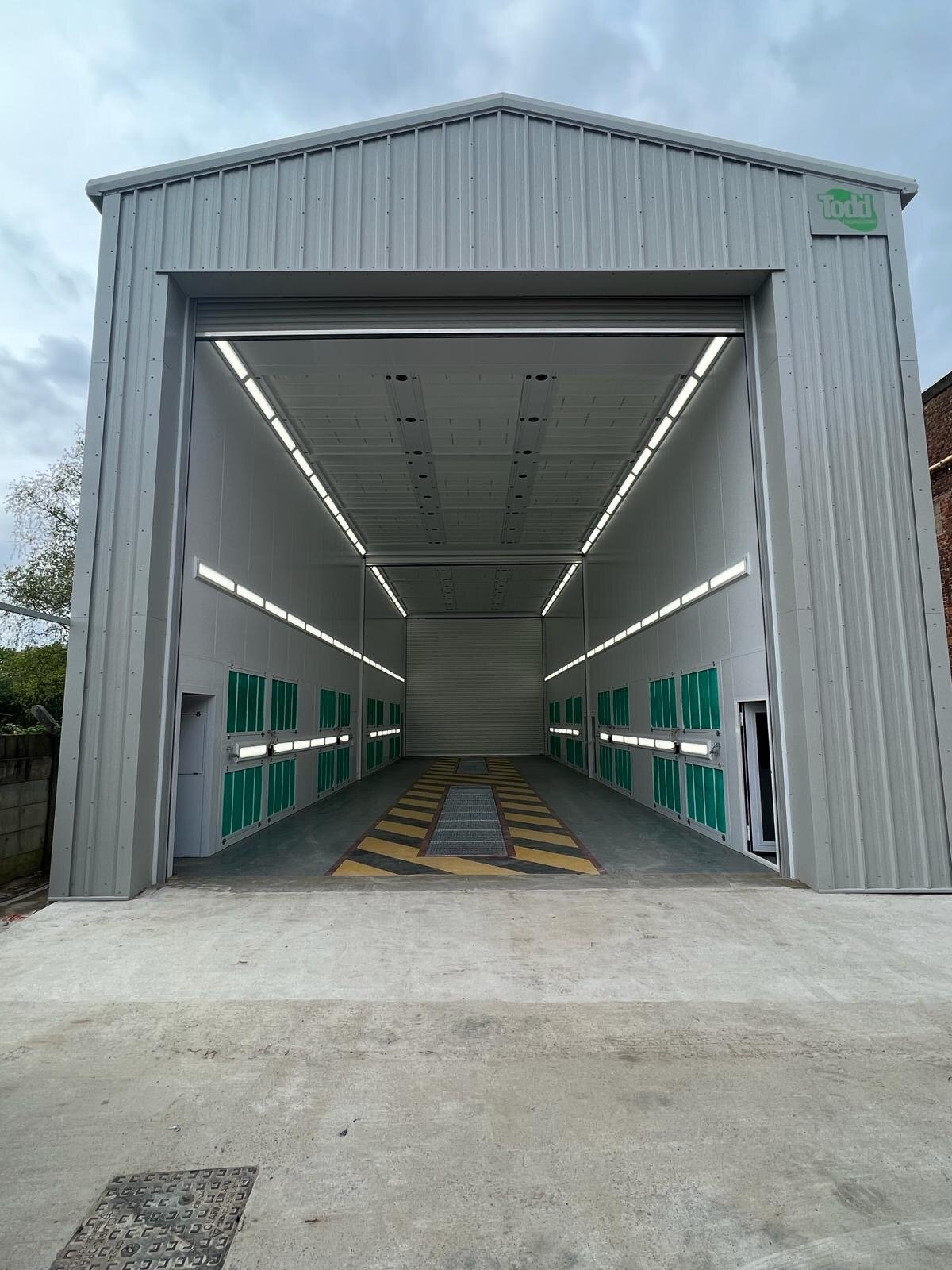

Titan CV Series 2

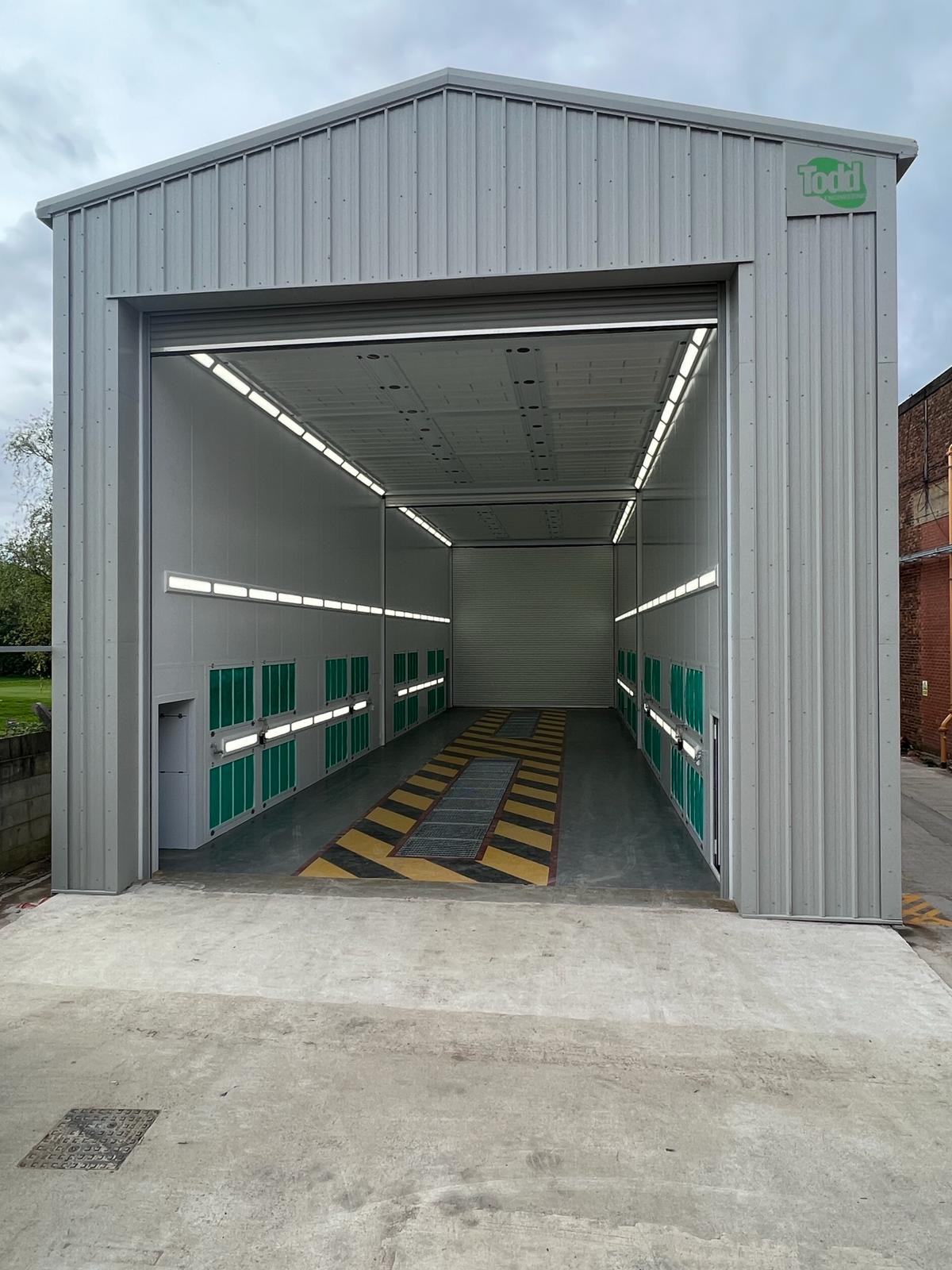

Titan CV Series 3

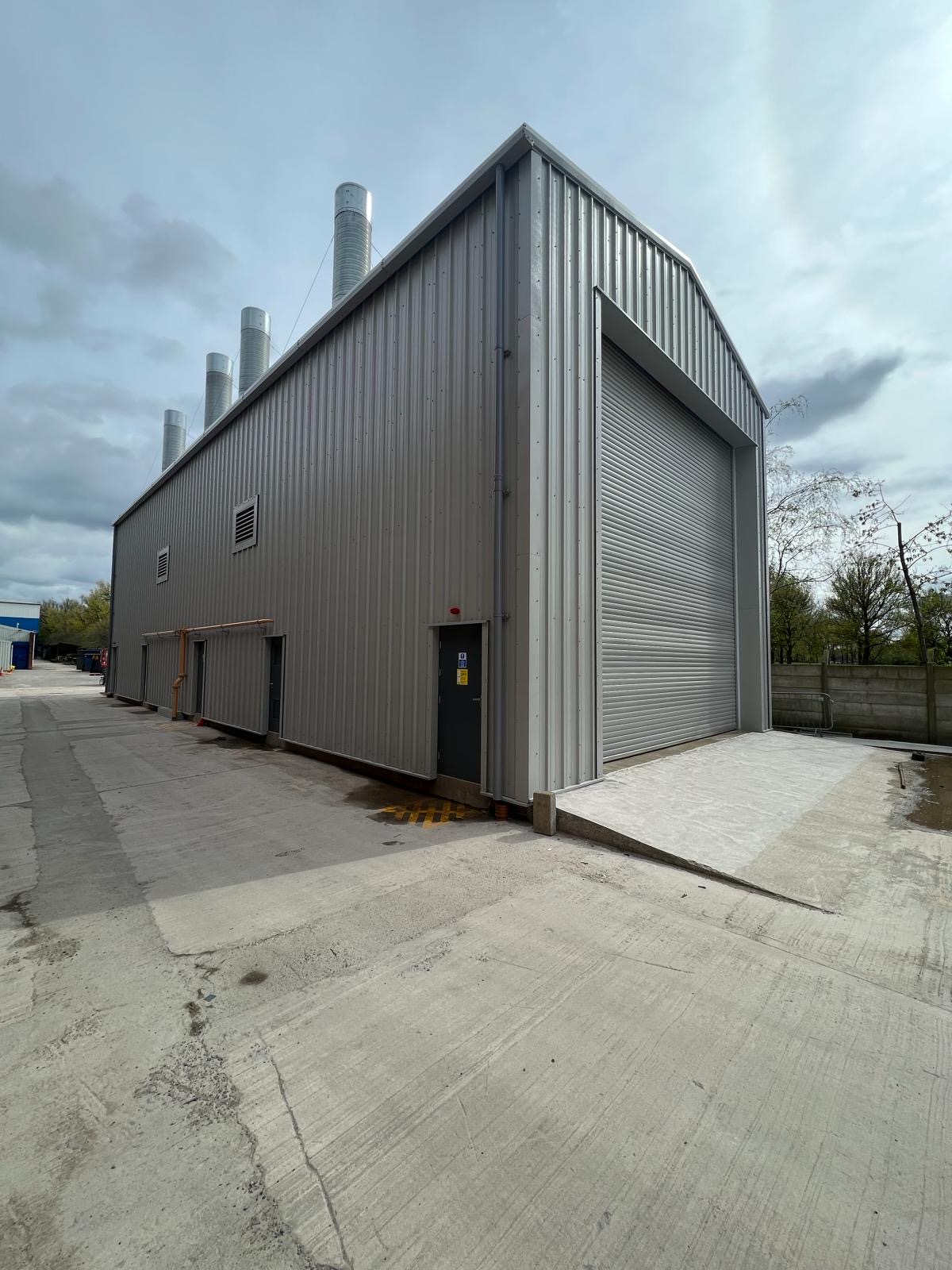

Titan CV Series 4

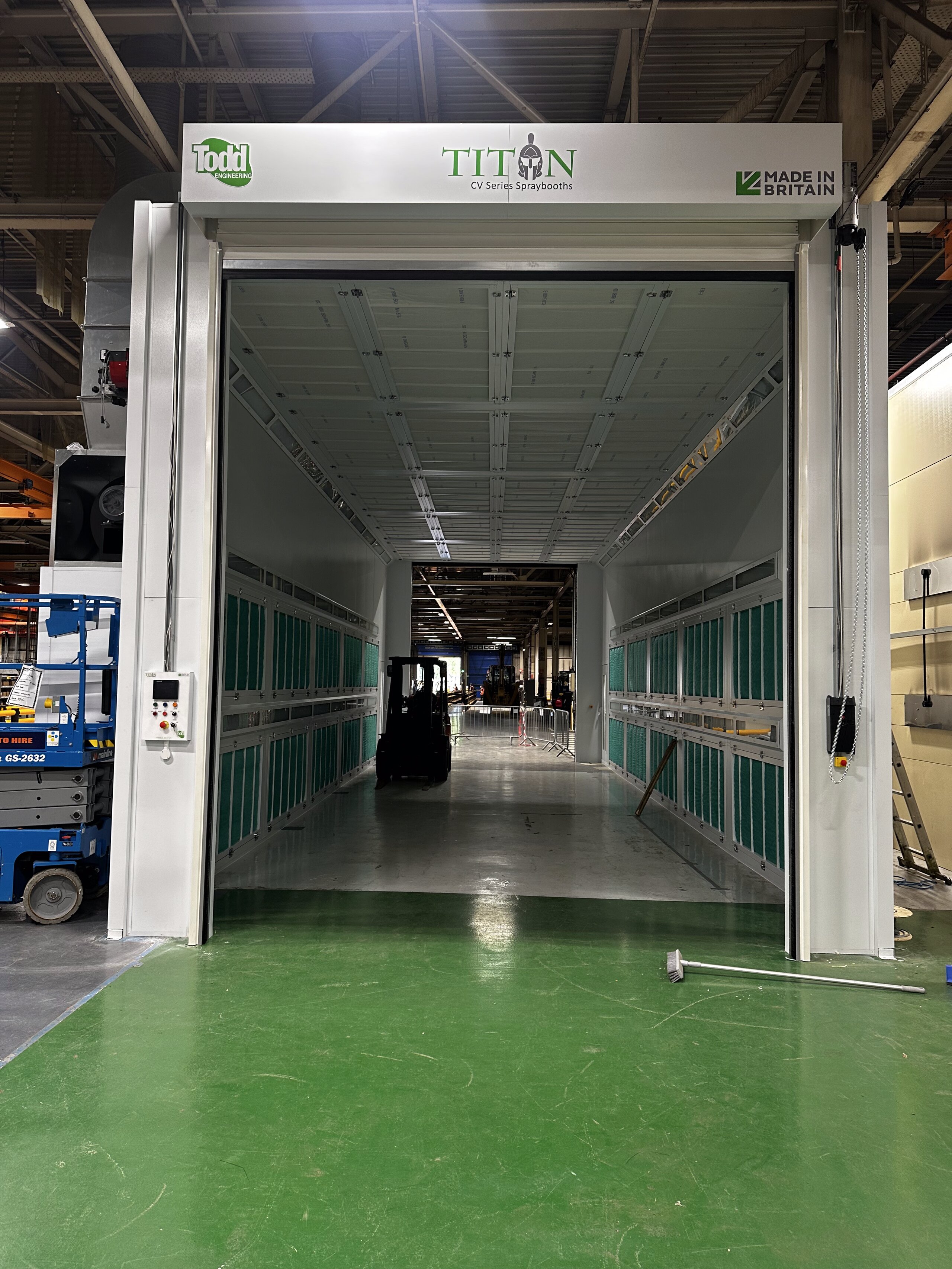

Titan CV Series 5
Commercial Vehicle
Downdraught Airflow
Gas-Fired Heating
High-Volume Throughput
